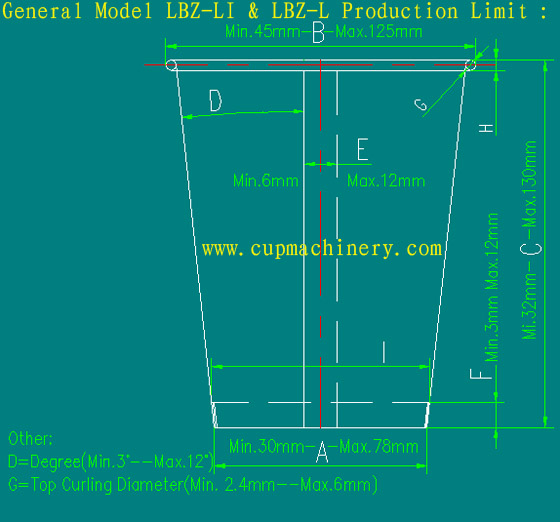

The following picture show the limit of paper cups that can be done in our general model (LBZ-LA Single Side PE Coated Paper Cup Machine & LBZ-LB Double Side PE Coated Paper Cup Machine)

• A == Paper cup bottom diameter (outside) , Min 30mm---Max 78 mm
• B == Paper cup top diameter (outside) , Min 45mm---Max125mm
• C == Paper cup height , Min 32mm ---Max 130 mm
• D == The coning(angle) of paper cups, Min 2.6Degree ---- Max 9 Degreee
• E == the paper cup side sealing width , Min 6mm --- Max 12 mm, the General is 8mm
• F == Cup bottom knurling(sealing) height, Min 3mm --- Max 12 mm, the General is 6mm
• G == the top curling diameter, from 2.4mm to 5mm, this is decided by the paper weight(the paper thickness),
• I == Paper cup bottom diameter( inside), it is a little difficult for you to measure,
• Please note: the range given is just for our general type paper cup machines( for LBZ-LI and LBZ-L paper cup machines), if your requirement is a special paper cups; For example,the cup higher than 130mm, we will make a special machine according to your requirement for you.

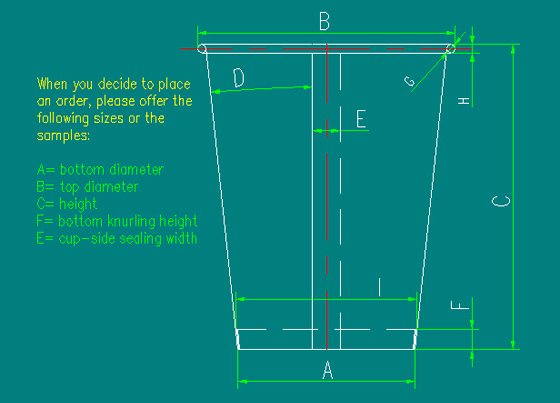

When you decide to place an order, please send us your samples or let us know the following paper cups sizes :

• A= bottom diameter(outside), B=top diameter (outside), C=height,
• The above three sizes are demanded .
• The other sizes, E=side sealing width, F=bottom knurling height, G=top curling diameter, The more details providing is appreciated.
• If you don't offer the sizes E,F,G . We will choose the General Size for you.
