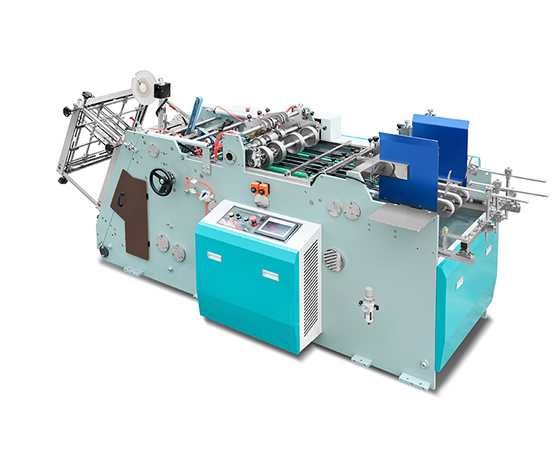

HBJ-800B Cam Double-rail Stereo Carton Forming Machine

BZJ series paper cover packaging machine

Product Introduction :

HBJ-800B cam double-rail three-dimensional paper box forming machine is a three-dimensional paper box forming machine driven by cam double guides, which has no noise and low vibration during the production process. The machine can be used to produce three-dimensional paper boxes such as hamburger boxes, packing boxes, cake boxes, French fries boxes, and hardware boxes.

Main Technical Data:

  • Raw Material：200-600g/m² cardboard
  • Productivity：60-160pcs/min
  • Power Source：380V 50Hz
  • Total Power：5.5Kw
  • Production Size Box Length：100-450mm Box Width：100-600mm Box Height：15-200mm
  • Degree：5-40˚
  • Dimensions:3600*1350*1500mm
  • Weight：2200kg

Paper Cups Samples Show:

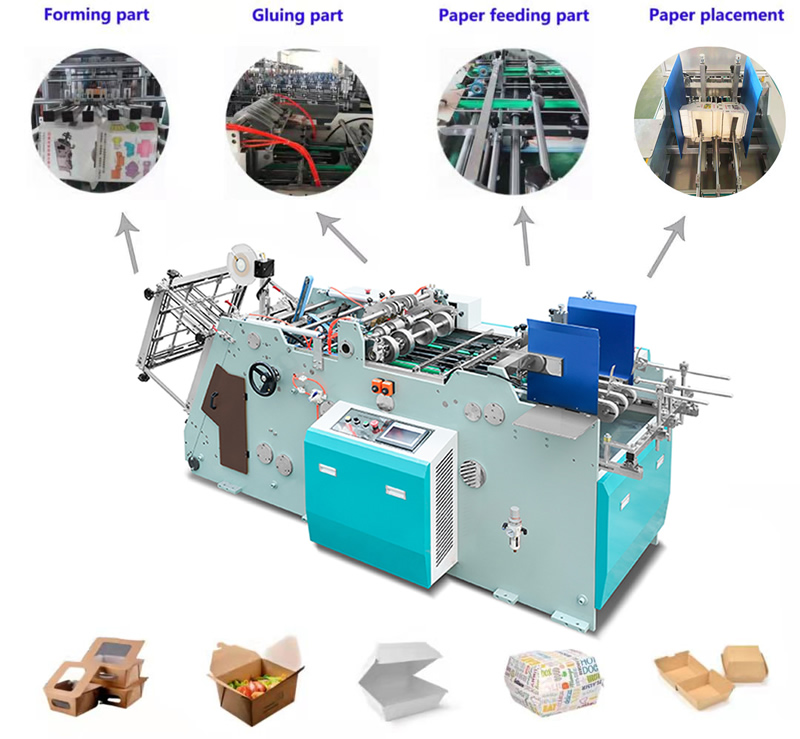

  • HS-HBJ-800B Cam Double-rail Stereo Carton Forming Machine
