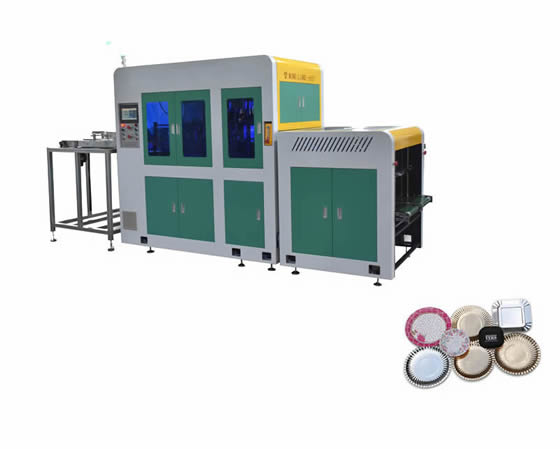

ZDJ660 energy-saving hydraulic paper tray machine
Product Introduction :
ZDJ660 paper plate machine is a new type of paper plate production machine developed by Bright Machinery in October 2022. The principle of hydraulic forming is adopted for mold forming, and the function of motor is used to push out the plate after forming, making the product discharge more stable. Upgrade and improve on the original 600 machine,Save 4 KWH of electricity per hour. It also adds automatic paper feeding function to reduce manual labor.
Advantages: :
1. Adopt the latest research and development of energy-saving hydraulic press, reduce 4KW per hour on the original basis.
2. After forming, the paper plate uses the motor to push out, does not use air blowing, and collects points more stable.
3. The points are delivered by motor instead of cylinder push plate to solve the chuck problem.
4. The conveyor belt is lengthened and can stay on the paper plate to solve the problem of assembly line congestion.
5.ZDJ660 adds an automatic paper feeding function, which can reduce the work without adding paper for a long time
6.The working frequency of people can operate more molding equipment.
Main Technical Data:
- Plate size: Paper diameter 360mm
- Gram weight of paper: 180-800 g/m2
- Paper material: Base paper, whiteboard, cardboard, aluminum foil or other
- Production rate: Double station 60-130 PCS/min
- Power: 380V 50HZ
- Gross power: Rated power 8KW Actual 5.5KW
- Machine weight: 2630kg
- Overall dimension: 4820× 1400× 2000mm Includes the length of the paper holder
- Matching air source requirements: The working pressure is 0.4Mpa, and the working gas volume is 0.1m3 / min
- Main technical parameters of oil cylinder:
ml-63-125-5t-x
Flow: 0.3 m3 / min
Oil pressure: Mpa 0.3-0.6
Cylinder stroke: 125 mm
- Other notes: we can customize paper plate machines with different specifications according to the customer’s requests
Samples Show
