PE Coating Machinery,Coating PE Film on Raw Paper,Coating Machine,Extrusion Film Lamination Machines

Single SIde PE Coating Machine

---one-side complex film Laminating per time

Brief Introduce:

This series of products are made by compounding fluid paper,plastic film,woven cloth or aluminum foil into double layer,three layer, three layer or multi-layer new materials,which are used for packaging products of cement, chemicals, forage, food, medicine, adhesive tape cloth,plastic coating paper cups and fast food boxes,etc.
The equipment abroad applies to film: the base materials of mold release paper, cup paper, bowl paper, melon seeds bag paper, non-woven cloth, gauze, aluminum foil. THe finished film has these characters such as fastness, fine effect, equal thickness and fine sealed capability and etc. Standards of various kinds are up to the international standars.

Main Technical Data:

The Specs....:............800mm, 1100mm, 1300mm, 1500mm, 1600mm, 1700mm, 1800mm, 2200mm
Working width: Max. 700mm, 1000mm, 1150mm, 1350mm, 1500mm, 1550mm, 1700mm, 2000mm
Using colophony : LDPE, PP, EVA, BOPP, BOPET, BOPA, CPP, CPE, PE
Quantity of extrusion: 160--260 kg/hour
Thickness of coating: 0.01mm----0.05mm
Uniformity of thickness: < + - 5%
Production of speed: Max. 100m/minute
Application range: Paper-plastic complex, Plastic-plastic complex, Aluminum-plastic complex, Paper-aluminumplastic complex, Alf-adhesive series.
Producing Methods: Single coating film complex, Three-level(sandwich) complex, Multi-level complex(with seven-level complex at one time)

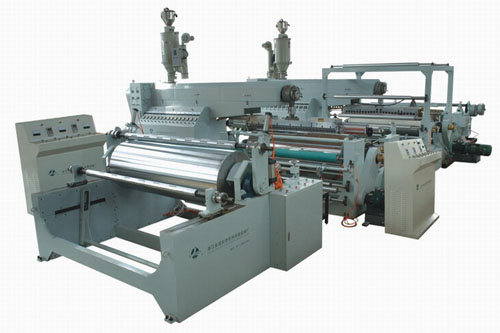

Double Mainframe Extrusion Complex Machinery Unit

Double SIdes PE Coating Machine

---Two-sides complex film Laminating per time, two Mainframe Extrusion Complex

This series machinery are used to finish the double-sides film technical adanced type of airplane at domestic, the euqipment used to need produce and complete compound materials at one time like double-sides plastic-coated paper, Hard-gloss photo paper or Multi-layer like milk box, syrup box, drink box and etc..It is an ideal equipment of producing asepsis wrapper.

PE Coating Machine
