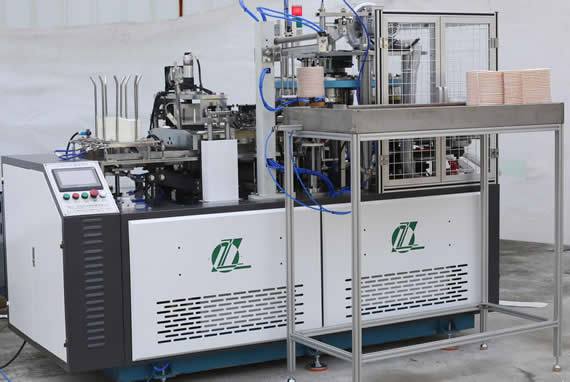

LBZ-LB6 Automatic Middle Speed Paper Bowl Machine

Brief Introduce :

This machine adopts open cylinder indexing slot wheel, The machine through only one aluminum plate to complete the process of making cups,it’s single shaft & plate system,then make the machine smaller and faster, It has automatic lubricating oil system, photoelectric detection, fault alarm, counting, cam system,touch screen and other functions, Through the automatic feeding, cup-fan-wall sealing, oiling, bottom punching, heating, knurling, curling, discharge cup etc.
continuous process. can improve the production of beverage mugs, tea mugs, coffee cup, advertising cup, ice cream cups speed is the ideal equipment.

Main Technical Data:

Name: Middle Speed Paper bowl Machine.
Model: LZ-D800
Paper bowl Size: 300m-1300ml
Size range: Top： 90-165 Bottom： 70-130 Height：50-115
Raw Material: PE paper
Suitable paper weight: 150-350 GSM
Productivity: 70pcs/min
Power Source: 220V/380v
Total Power: 8.5KW
Total Weight: 3000KG
Appearance size(L x W x H):  2520mmx1160mmx1750mm
Working Air Source:05-08MPa，0.4CBM/min.
Operator :one persone .
Working hours:24 hours.
HS Code:84414000.

LBZ-LB6 Automatic Middle Speed Paper Bowl Machine

Brief Introduce :

Main Technical Data:

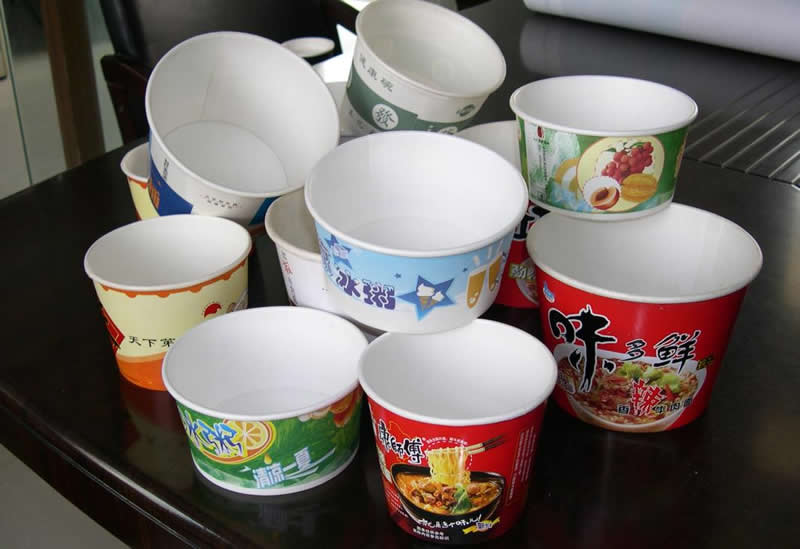

Paper Bowl Samples Show:
