Technical Specification

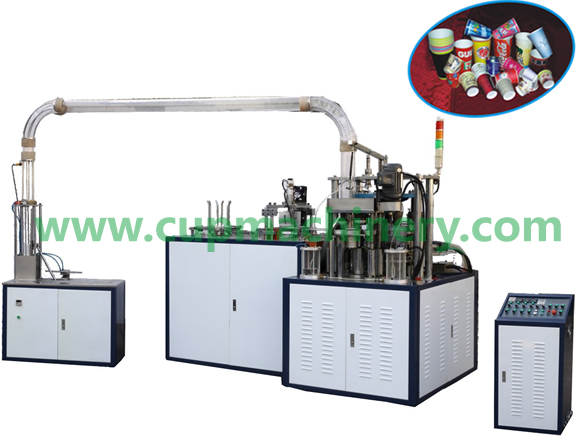

Model: LBZ-LAB
Cup Size 7oz-36oz
Raw Material:Two-side/one side PE(Polyethylene)film coated paper(170-350g/m2)
Productivity:55-75 pcs/min
Power Source 380V 50Hz or other required
Total Power:11 KW
Weight:2100 Kg
Package Size:2850 x 1700 x 1750mm

Finished Products' Usage:

Double sides PE coated paper cups are widely used for all kinds of drinks: hot drinks(hot coffee cups, hot water cups), cold drinks paper cups(ice-cream cups),all kinds of beverage, and some other special use

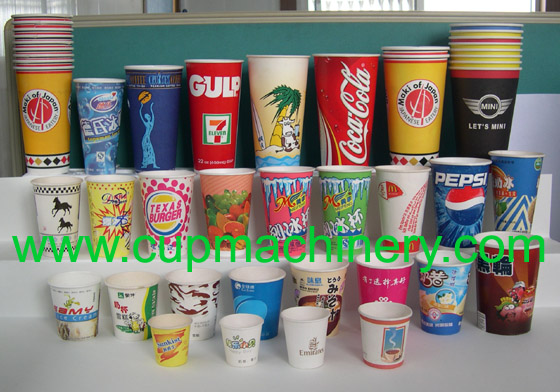

Paper Cups Samples Show:

Specification:

1. Automatic control adopts optically controlled non-contact switch,
2. Micro-controlled transducer,
3. Step-less speed adjustment,
4. Paper Cup-fan-wall body sealed by Ultrasonic System,
5. Paper Cup bottom sealed by heater.
6. Full automatic,
7. Easy changing molds produce different sizes paper cups,
8. Easy operating by operator (one operator is enough),
9. Easy maintenance with minimum cost,
10. Cheap operating cost and low investment,
11. Amelioration:Air compressor aren't required for this type paper cup machine when the paper weight under 300gsm.
