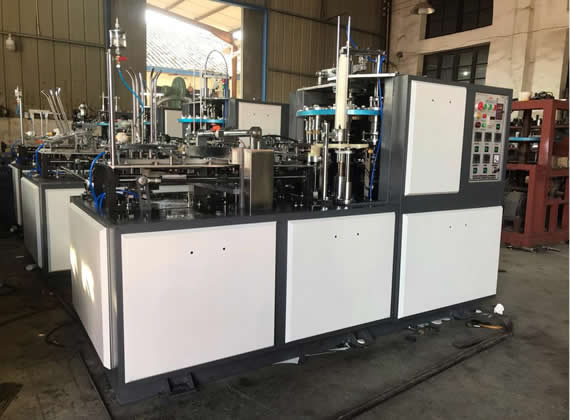

LBZ-LA4 Singe Plate Paper Cup Machine
Brief Introduce :
bz-la4 automatic single plate paper cup machine is a multi-station automatic forming machine, automatic lubrication system, open cam ,Gear motor.
The single plate and the shaft system, it through the automatic paper feeding, sealing, bonding glass), filling, filling, heating, knurling, continuous processes such as edge, and photoelectric detection, fault alarm, counting, and other functions, is the production of cardboard beverage mugs, tea mugs, coffee cup, advertising paper cups, ice cream cups, or other food cone shape of the container ideal equipment.
Main Technical Data:
- Paper Bowl Sizes: 2-9 oz.
- Row material: Single side(one side) PE(polyethylene) film coated paper
- Suitable paper weight: 150--260 gsm
- Speed of making paper bowls: 70--80 pcs per minute
- Limit of temperature control: 0--400 Centigrade
- Total power: 5 KW
- Power source: 380 V,220V 50 Hz,60 Hz or other Customer needed
- Whole machine weight: 1500 kg
- Appearance size(L x W x H): 2100 x 1000 x 1600 mm
- Note:We can make the paper bowl machine suitable for your requirement.
Finished Products' Usage:
Single side PE coated paper cups are widely used for hot drinks( hot coffee cups, hot water), some cold drinks(ice-cream cups). One side PE coated paper cups is not suitable for some certain beverage: coca-cola, coke, cold beer. The reason is when a certain beverage or cold beverage filling in one side PE coated paper cups, the paper become softened and the water will leak out slowly.
IF you really want to produce the cups filling beverage or cold drinks, recommend you use double PE coated paper cups produced by ultrasonic system double sides PE coated paper cup machine
Paper Cups Samples Show:
- From above images,The first, the second and the third row are the single PE coated paper cups(2.5oz---18oz), the forth row are higher paper cups(higher than 130mm, maken in SPeical Paper Cup Machine)
- The above image show the ice-cream paper cups, (single side and double side PE coated paper cups)
- .......>>>>>>More Samles
Specifiction:
- Automatic control adopts optically controlled non-contact switch,
- Micro-controlled transducer,
- Step-less speed adjustment,
- Paper Cup-fan-wall body sealed by heater,
- Paper Cup-fan-wall body sealed by heater.
- Full automatic,
- Easy changing molds produce different sizes paper bowls,
- Easy operating by operator (one operator is enough),
- Easy maintenance with minimum cost,
- Cheap operating cost and low investment,
- Amelioration:Air compressor aren't required for this type paper bowl machine when the paper weight under 300gsm.
