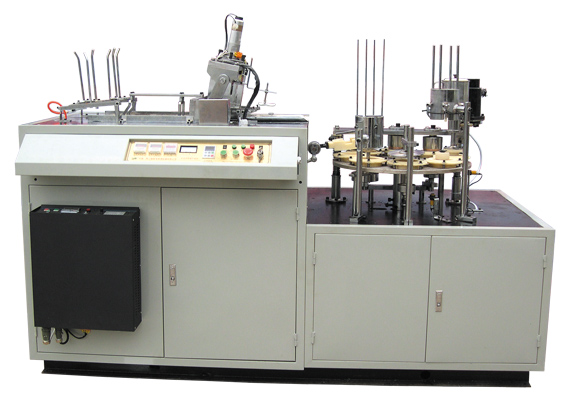

LBZ-LH Automatic Direct Paper Sleeve Forming & Wrapping Machine

Brief Introduce :

To customers requirement, when drink hot water,coffee,and hot noodle,,,,only one wall paper cups/bowls become very hot,inorder to prevent hands from hurting by hot drinks, we make a sleeve(out coat/jacket)over the inner cup/bowl . That means two walls(layers) cup/bowl .

Model LBZ-LH Automatic Direct Paper Sleeve Forming & Wrapping Machine is an accessory to the paper cup/bowl machine. It enjoys advanced technology and reasonable design, and has the functions of automatic paper-feeding, sealing , trouble alarming and counting.
Double wall paper cups have two layers(walls), the inner is the white cup(bowl), the out layer is the jacket with printing.So to make double wall paper cups need two types machines,
1.to make the inner cup,use LBZ-LA or LBZ-LB paper cup forming machine,
2.to make the out jacket, use the LBZ-LH Automatic Direct Paper Sleeve Forming & Wrapping Machine,
The out sleeve,have two styles,
A . Direct style : the out sleeve just direct agglutinating over the inner cup by mucilage(gluewater)......the samples show
B . Hollow style : the bottom of the sleeve layer folded, between the out jacket and the inner cup, there are space,that mean it is hollow......the samples show
To make the direct or hollow sleeve in the LBZ-LH Automatic Direct Paper Sleeve Forming & Wrapping Machine, there is a little different on the sleeve-bottom forming. To make the hollow style, the bottom of the out sleeve is folding/curling like the inner white-cup's bottom.

Main Technical Data:

Suitable Paper Cup Sizes: From 6oz--20oz or 20oz---60oz
Row material of outside packing: Wite plank paper of ash bottom(with smooth and bright printing)
Ration productivity: 40--50 pcs per minute
Total power: 4 KW
Power source: 380 V,220 V50 HZ,60 HZ or other needed
Whole machine weight: 850 kg
Appearance size(L x W x H): 2450 x 1260 x 2000 mm

Specifiction:

Automatic control adopts optically controlled non-contact switch,Micro-controlled transducer,Step-less speed adjustment,
The out-side Jacket(coat) sealing by the ultrasonic system
Feed the inner cups(finished) to the input, auto absorb the inner cup to the out sleeve,
Auto insert the sleeve to the inner cup
Automatic Agglutinate the out layer on the paper cups with mucilage,
Easy changing molds produce different sizes paper cups jacket,
Easy operating by operator (one operator is enough),
Easy maintenance with minimum cost,
Cheap operating cost and low investment,
Air compressor is required for this type machine.

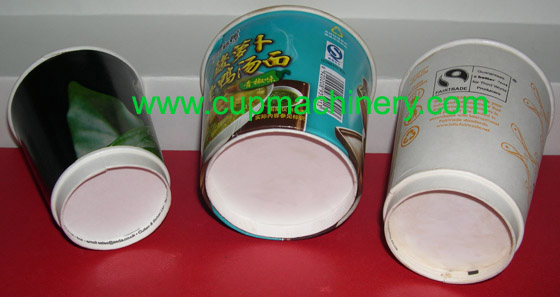

Double Walls Paper Cups Samples Show: Paper cups with sleeve wrapped

Double walls paper cups, sleeve wrapped on the paper cups.

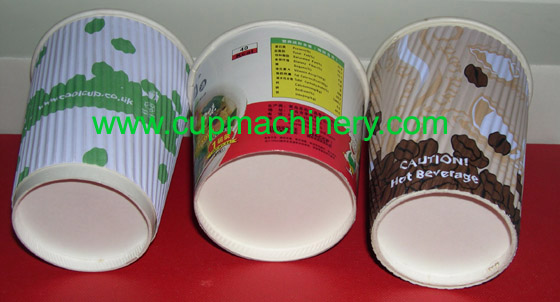

The above image show Dirrect sleeve wrapped cups
The above image show Hollow sleeve wrapped cups
.......>>>>>>More Samles
