Main Technical Data:

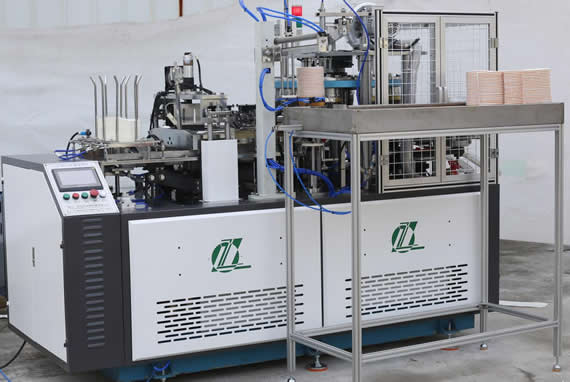

• Specifications of paper glass machine: automatic Middle Speed paper cup machine.
• Model: LBZ-LB5 paper cup machine
• Paper Cup Size: 3oz-9oz and 9oz-16(mold exchangeable)
• Raw Material: One-side PE (polyethylene) film coated / laminated paper Ultrasonic machine can be produce single and double PE paper
• Suitable paper weight: 160-350 gsm
• Productivity: 80-100 pcs/ minute
• Power source: 220V/380V 50Hz or other required
• Total Power: 6KW
• Whole machine weight: 2500KGS
• Appearance size(L x W x H):  2350x1100x2000mm
• Working Air Source:0.4 Mpa, Air Out-put:0.6 m3/minute.
• Operator :one persone .
• Working hours:24 hours.

Paper Cups Samples Show:

•
• From above images,The first, the second and the third row are the single PE coated paper cups(2.5oz---18oz), the forth row are higher paper cups(higher than 130mm, maken in SPeical Paper Cup Machine)
•
• The above image show the ice-cream paper cups, (single side and double side PE coated paper cups)
• .......>>>>>>More Samles
