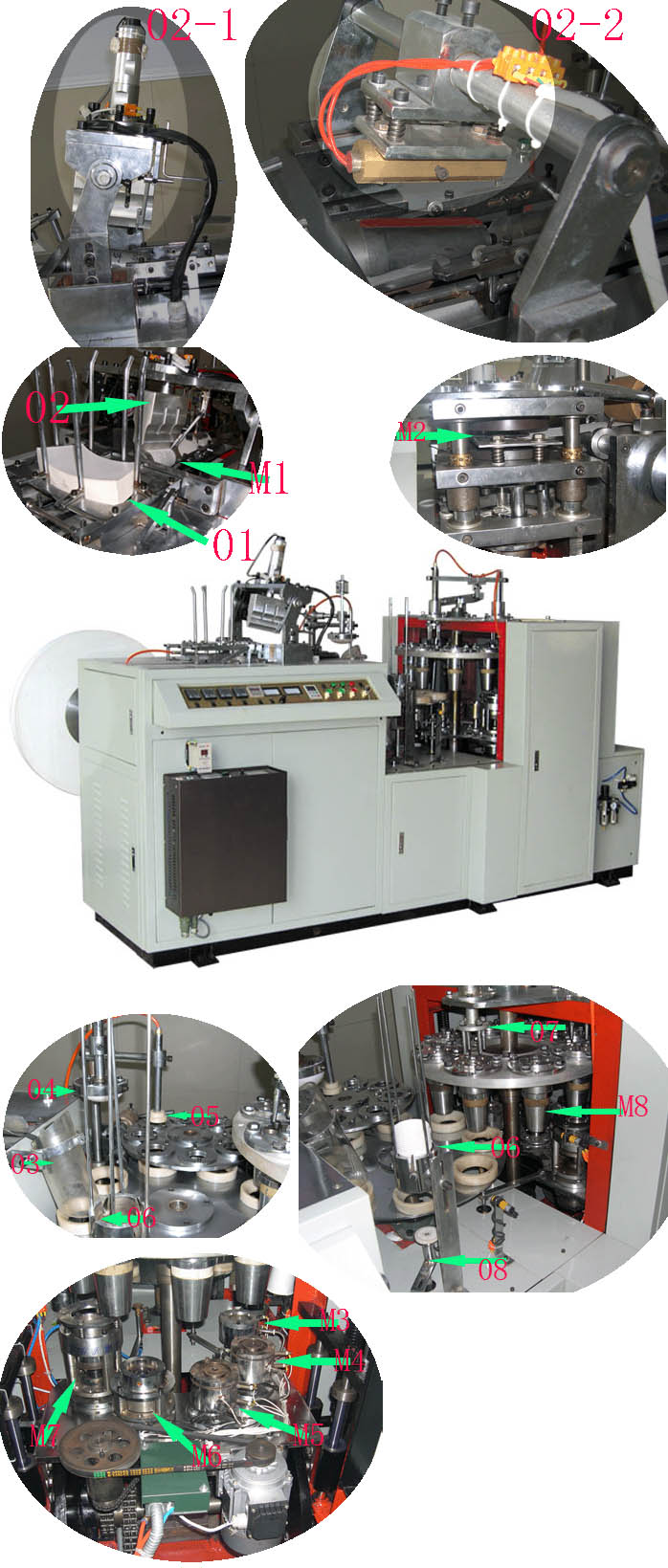

Description :

• "01" : the cup-fan-wall sheets input place , The Printed side under ,
• "02" : the cup-side sealing head ( there are heater "02-2" and ultrasonic header "02-1") ,
• "03" : drop the cup-side to the transfer desk ,
• "04" : lubricate oil(food grade, no color no smell, 201# DiMethyl silicone oil, ) for the top curling ,
• "05" : send the cup-bottom circular piece to the cup-side ,
• "06" : collection place ,
• "07" : discharge the finished cup ,
• "08" : send the finished cup to the collection ,

The molds :

• "M1" : Cup-side-seal-mold ;
• "M2" : Bottom-punching-knife ;auto punch rolling paper to circular piece
• "M3" : Pre heating furnace and pre folding ;
• "M4" : Main heating furnace ;
• "M5" : Main heating furnace ;
• "M6" : Bottom-knurling-mold ;
• "M7" : Cup-top-curling-mold ;
• "M8" : Main Molds (8 pieces) .
